Cantilever Monomount

£269.99
£269.99 £0.00
Options
Color

Description

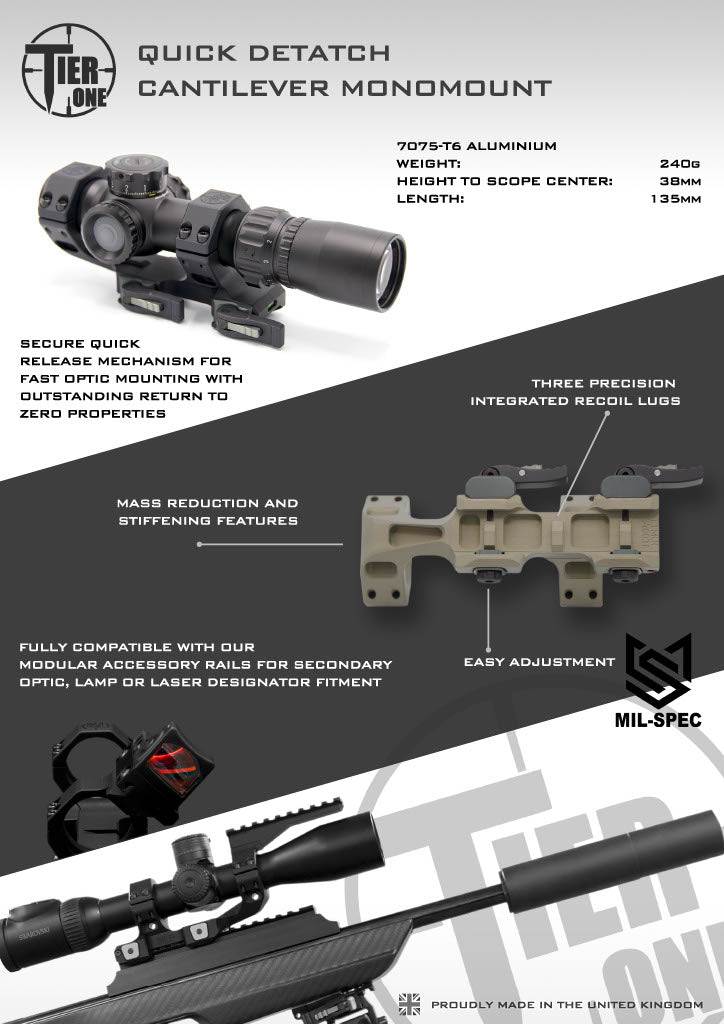

Cantilever Monomount

This is a true one-piece cantilever mount, milled from a solid billet of 7075 T6 aluminum on high end 5 axis machines.

You will see improvements in accuracy, precision and repeatability as a result of the incredibly tight tolerances achieved in the manufacturing of this premium mount.

The key to accuracy in manufacture is to minimise the number of operations required to complete the machining process.

By investing in new technology, we have been able to cut the number of operations required from eight to two. This means there is no accuracy loss due to re-setting for different operations and ultimately more accuracy down range for you, and greater repeatability for fine tuning your setup.

As this mount was originally designed for elite military units it has been tested under incredibly demanding conditions. It's extremely tough, lightweight and will give you many years of faultless service.



WEIGHT

 Size Weight (Oz) Weight (g)
30mm 7.26 206
34mm 7.26 206
35mm 7.19 204
36mm 6.98 198



DATA SHEET

Specifications;

Manufactured from High Grade 7075T6 Aluminium
Large scope clamping area to withstand heavy recoil
Available in 30mm-34mm-35mm-36mm and 40mm tube sizes
Mil-Spec 30 micron hard anodised finish
Built in Anti-Cant bubble
Bolt on accessory rails available for ring caps and saddle
One Hit machining to ensure repeatability



Shipping & Taxes

Shipping and taxes are calculated at checkout. If no tax is added you may still be charged import taxes/duties in your country upon arrival.
